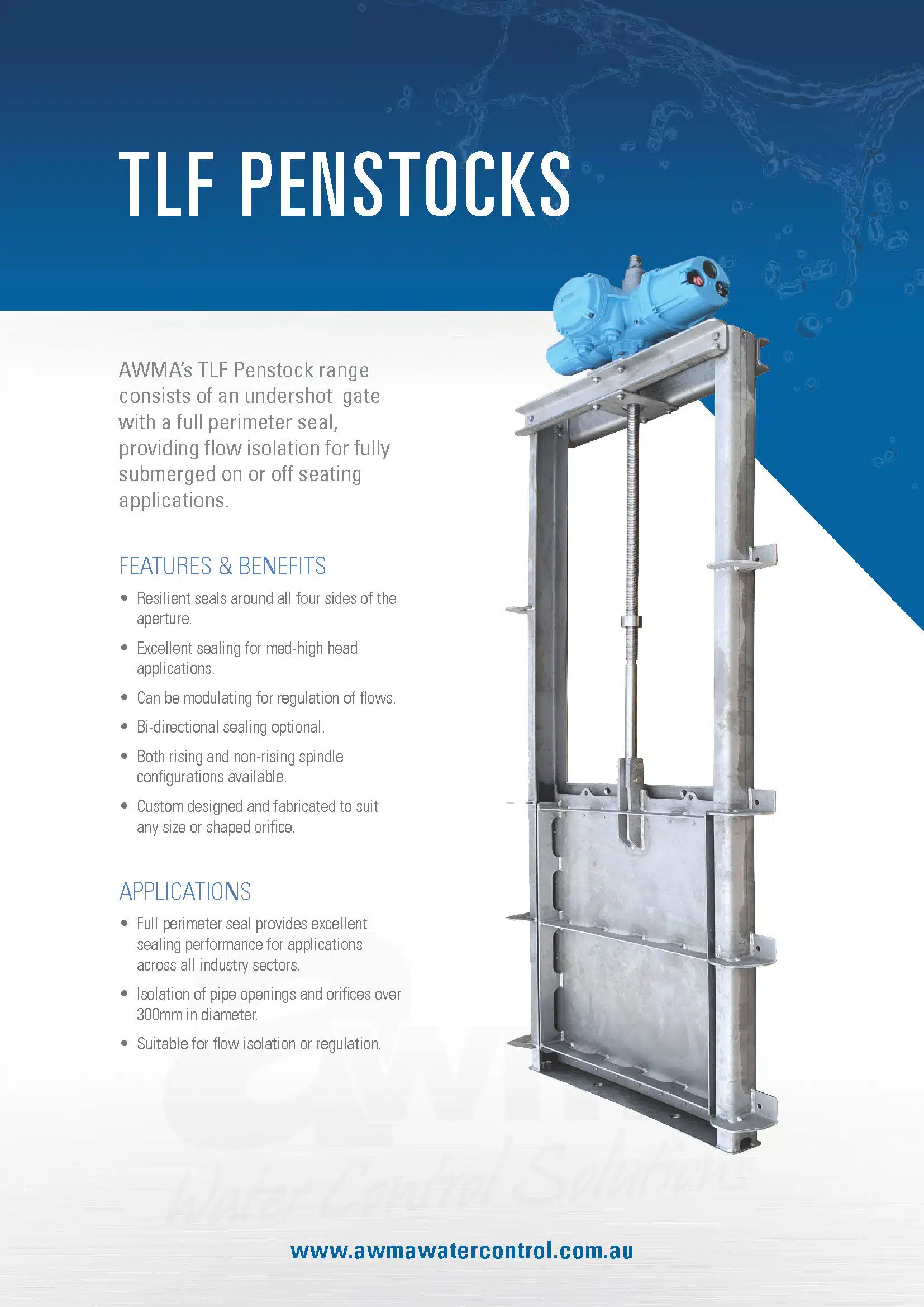

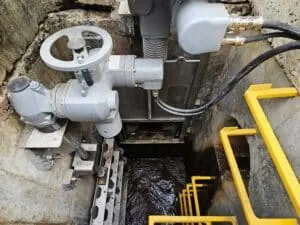

AWMA’s TLF Penstock range consists of an undershot gate with a full perimeter seal, providing flow isolation for fully submerged on or off seating applications.
FEATURES
- Resilient seals around all four sides of the aperture.
- Excellent sealing for medium head applications.
- Suitable for flow regulation applications.
- Seals are bi-directional as standard.
- Both rising and non-rising spindle configurations available.
- Frame customised to suit application.
APPLICATIONS
- Full perimeter seal provides excellent sealing performance for applications across all industry sectors.
- Isolation of pipe openings and orifices over 300mm in diameter.
SIZES
- AWMA offer a range of standard size TLF penstocks to suit typical pipe and culvert openings.
- If required, AWMA can provide a customised solution for non-standard applications.
MATERIALS
- AWMA TLF penstocks are typically manufactured from marine grade aluminium or stainless steel (grades 304, 316, 2205 or 2507).
- Material selection is discussed with clients to determine the most appropriate material for the application.
- Seals are mechanically fastened (non-adhesive) and are designed for ease of replacement.
- AWMA utilise plasticised PVC and/or EPDM seals due to their superior performance in a range of environments including stormwater, wastewater and sea water.
- Ultra-high molecular weight polyethylene (UHMWPE) is used for TLF penstock guides and seal retainers. UHMWPE is a hard wearing, low friction material that is ideal for bearing surfaces and the prevention of metal-metal sliding contact or the isolation of dissimilar metals.
SEALING
- AWMA TLF Penstock seal performance meets or exceeds that nominated in the Australian Technical Specification for Fabricated Water Control Infrastructure, BS 7775 and AWWA C561.
MANUFACTURE
- All AWMA products meet relevant Australian and international standards.
- All fabrication is in accordance with the ‘Australian Technical Specification for Fabricated Water Control Infrastructure’.
- All stainless steel welding is continuous to avoid crevice corrosion.
- AWMA hold international accreditations for ISO 9001; Quality, ISO 14001; Environment and ISO 45001 OH&S management.
- AWMA’s Integrated Management System aims to provide a framework to deliver products and services that consistently exceed customer expectations.
MOUNTING OPTIONS

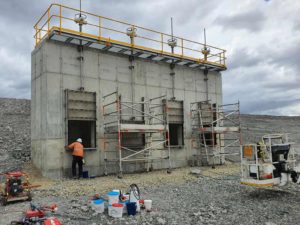

- Ideal for pit and headwall installations.

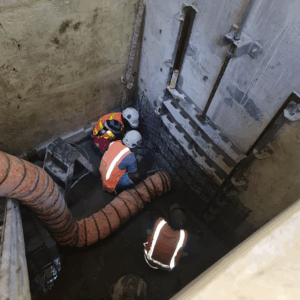

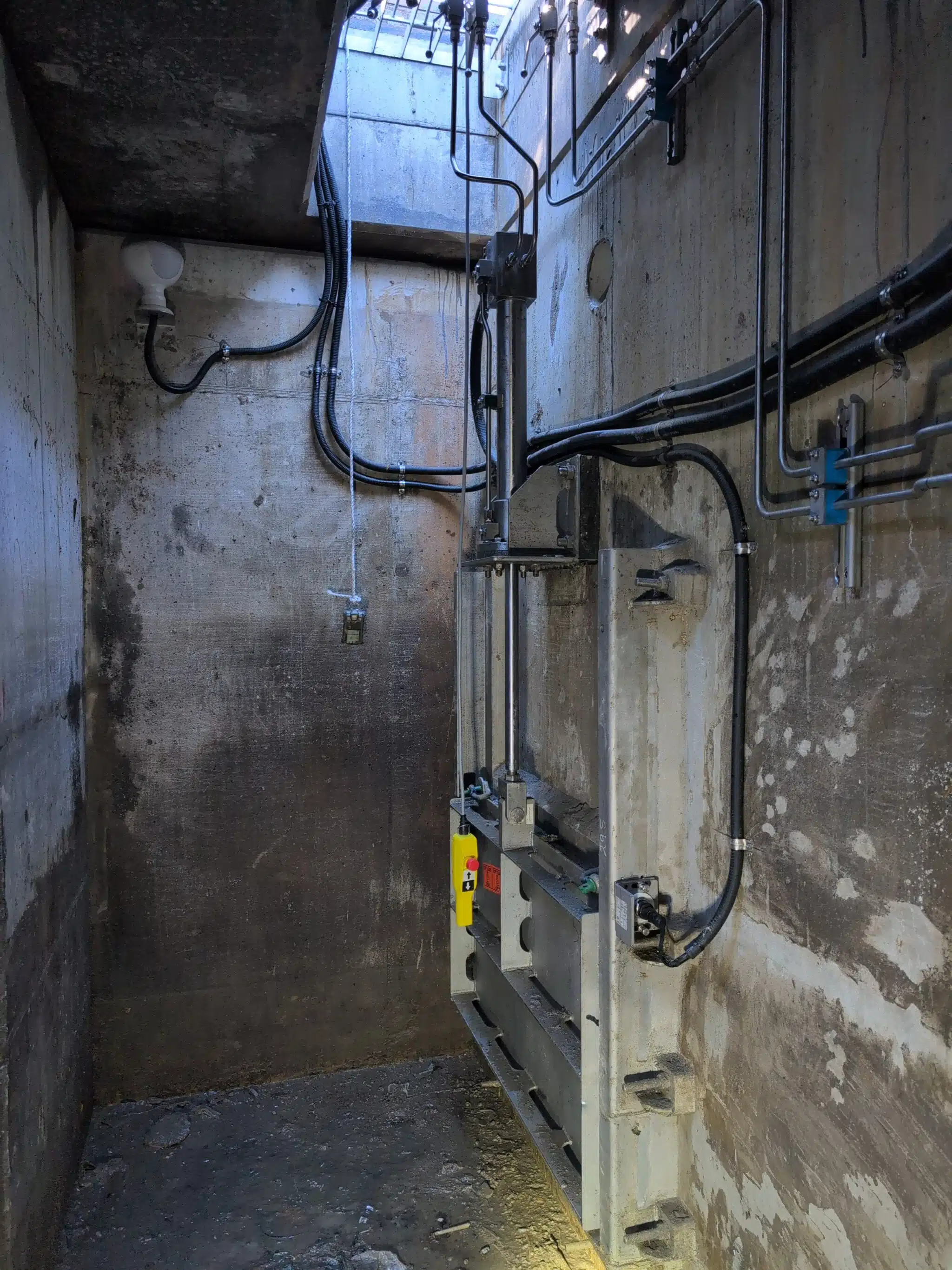

- The TLF Penstocks are typically wall mounted.
SPINDLE OPTIONS
- Choose from:
- Rising Spindle
- Non-Rising Spindle or
- AWMA's Rising / Non-Rising Spindle Arrangement
ACTUATION SYSTEMS

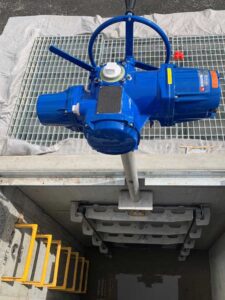

- AWMA TLF Penstocks can be customised to suit a range of actuation options including manual (handwheel), portable actuator, electric actuator, or hydraulic/pneumatic cylinder.
MAINTENANCE
- AWMA use ultra high molecular weight polyethylene (UHMWPE) for penstock door guides and/or wedges to provide maintenance free bearing surfaces.
- AWMA TLF penstocks are designed to be effectively “maintenance free”, offering a very low “whole of life cost”.
- Should seals be damaged, they are designed for ease of replacement in situ.
DOCUMENTATION AND TRAINING
- Detailed documentation on operation, testing procedures and maintenance will be provided with all AWMA water control solutions.
- Comprehensive on and/or off site training available.
Contact AWMA today to discuss this product, or any other type of quality manufactured penstocks or solutions for any of your water or wastewater control and management needs.
