A penstock is a water control gate or structure that controls flow. Penstocks may also be known as Sluice gates, Slide gates or Stopgates. Penstocks are designed for flow regulation, diversion, level control or isolation.

AWMA Water Control Solutions specialise in the custom design, manufacture and installation of penstocks and water control gates.

AWMA is a renown penstock supplier, manufacturing high quality, high performance water control gates for all industries. Aluminium and stainless steel water management products are supplied as standard designs or tailor made to meet specific site requirements. Technical Sales Managers located in Australia and New Zealand are available for early contractor involvement and site inspections as required.

Penstocks supplied by AWMA accommodate client requirements, site specifications, environmental conditions and operational preferences. Turn-key solutions for penstock applications include consultation, design, manufacture, install and commissioning.

AWMA'S RANGE OF PENSTOCKS AND WATER CONTROL GATES INCLUDES:

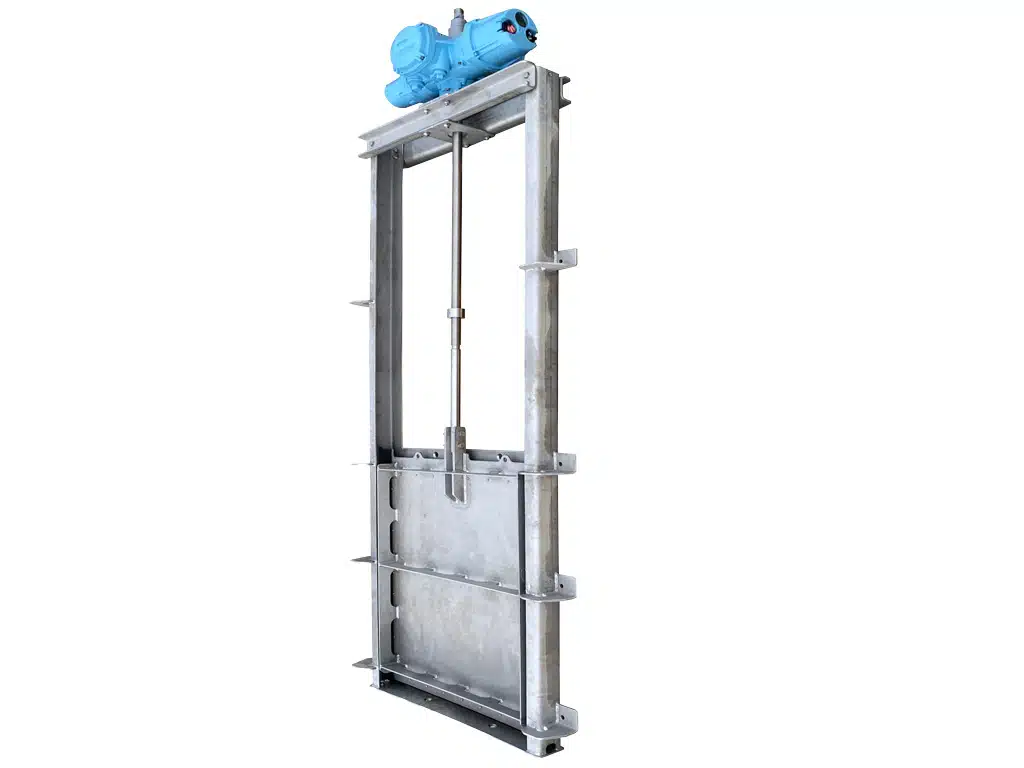

Topsealing penstocks with full perimeter sealing

TLF PENSTOCKS: undershot regulation with a full perimeter seal

SLF PENSTOCKS: undershot with full perimeter seal for fully submerged ON or OFF seating

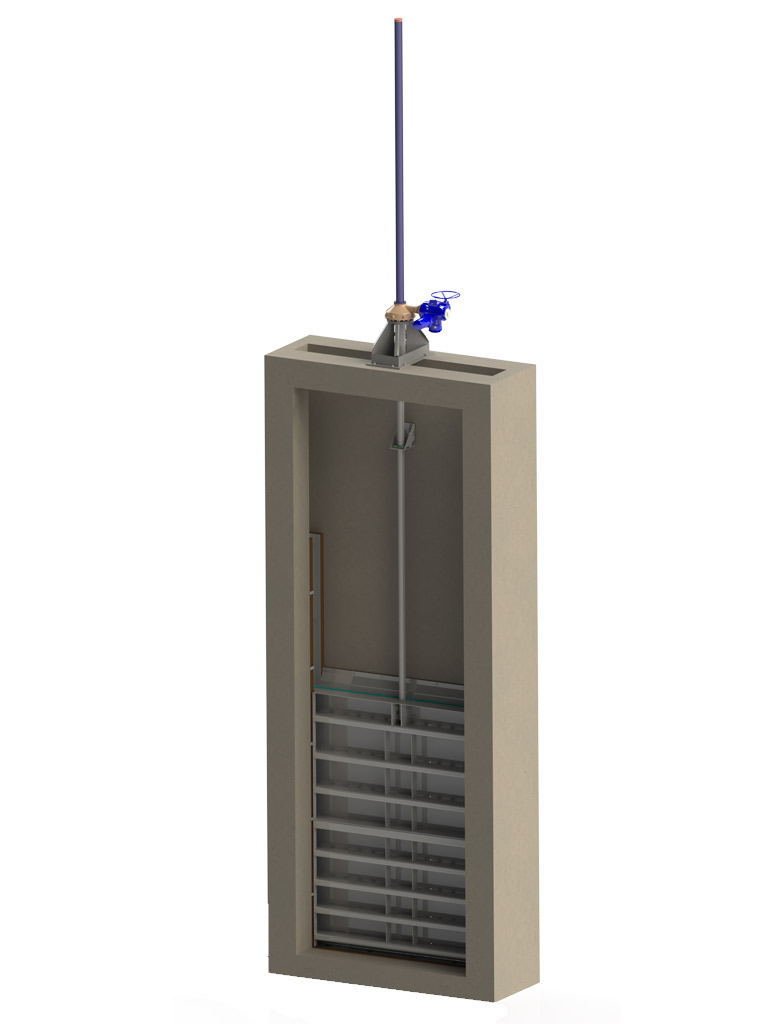

Undershot regulating penstocks / sluice gates

ULF PENSTOCKS: undershot regulation (Sluice Gates, Slide Gates, Stop Gates, Water Gates)

DLF PENSTOCKS: downwards opening, decant weirs

DECANT GATES: a high frequency modulating gate for decanting applications

Wedge locking penstocks for excellent sealing against high head pressures

WLF PENSTOCKS: full perimeter sealing penstock designed for high head applications

SIDEWINDERS: a horizontal opening slide gate

LAYFLAT GATES: downwards opening, fish-friendly, tilt gates

MULTIBAY LAYFLAT GATES: multiple LayFlat Gates fabricated into a single structure

Multi-leaf multi-functional control gates

COMBINATION GATES: multi-leaf structures with independently actuated gate leaves

Multi-leaf gate designs allowing flow under and/or over the gate leaves.

MULTI-LEAF GATE: allowing flow under and/or over multiple gate leaves

Modular stop board segments fabricated in 100mm increments

SEGMENTED STOPBOARDS: fabricated 100mm high modular segments

STOPLOGS: modular segments of any size, joined to effectively isolate flows

BULKHEADS: singular structures that provide isolation

ROUND BOTTOM BULKHEADS: engineered for isolating benched profiles

a rounded water control gate with long radial arms

RADIAL GATES: a rounded water control gate (Tainter Gate) with long radial arms

one way / non-return flap gate valve designed to prevent backflow

FLAP GATES: one way / non-return flap gates designed to prevent backflow

SPECIALISED WATER CONTROL GATES: innovative, engineered control gates

AWMA supply a large range of standard and custom penstocks, valves and water gates, including:

ULF Penstocks – Undershot regulating penstocks
SLF Penstocks - Wedge Penstocks
TLF Penstocks – Topsealing penstocks
WLF Penstocks – Wedge locking penstocks
DLF Penstocks – Downwards opening decant / weir style penstocks
Bulkhead Gates and Stoplogs - Single piece gate for flow isolation
Modular StopLogs - Modular segments joined to isolate flows
Combination Gates - Multi-leaf multi-functional control gates
SideWinders – Sideways opening slide gate
LayFlat Gates – Downwards opening tilt gates
Radial Gates – Radial undershot and overshot gates

Specialised Penstocks - one-off products for site specific water, effluent and odour control

Extensive experience and high quality in-house capabilities allows AWMA to successfully provide a large variety of control solutions for challenging sites. Contact AWMA to discuss how an AWMA penstock can add value to your next project.
